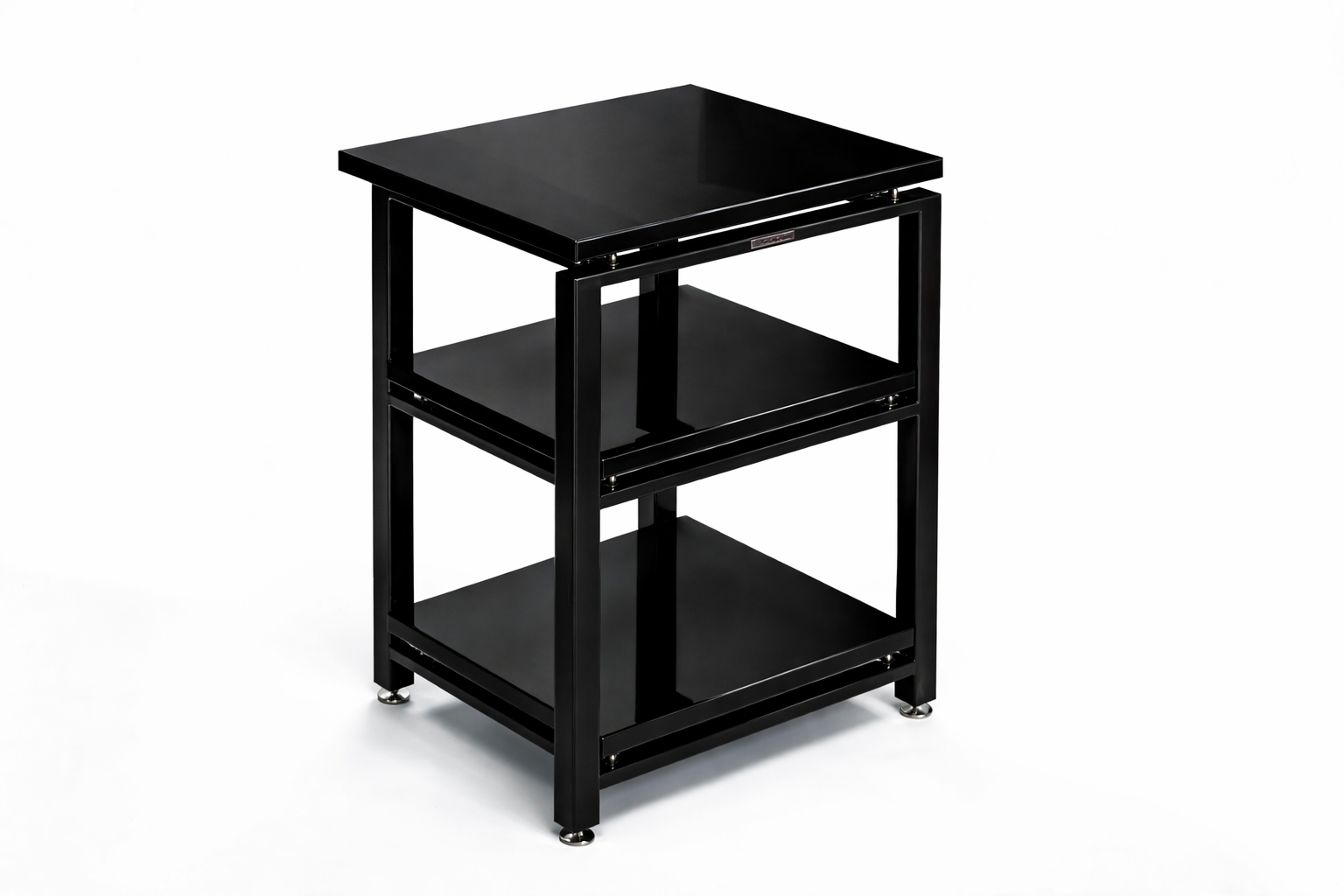

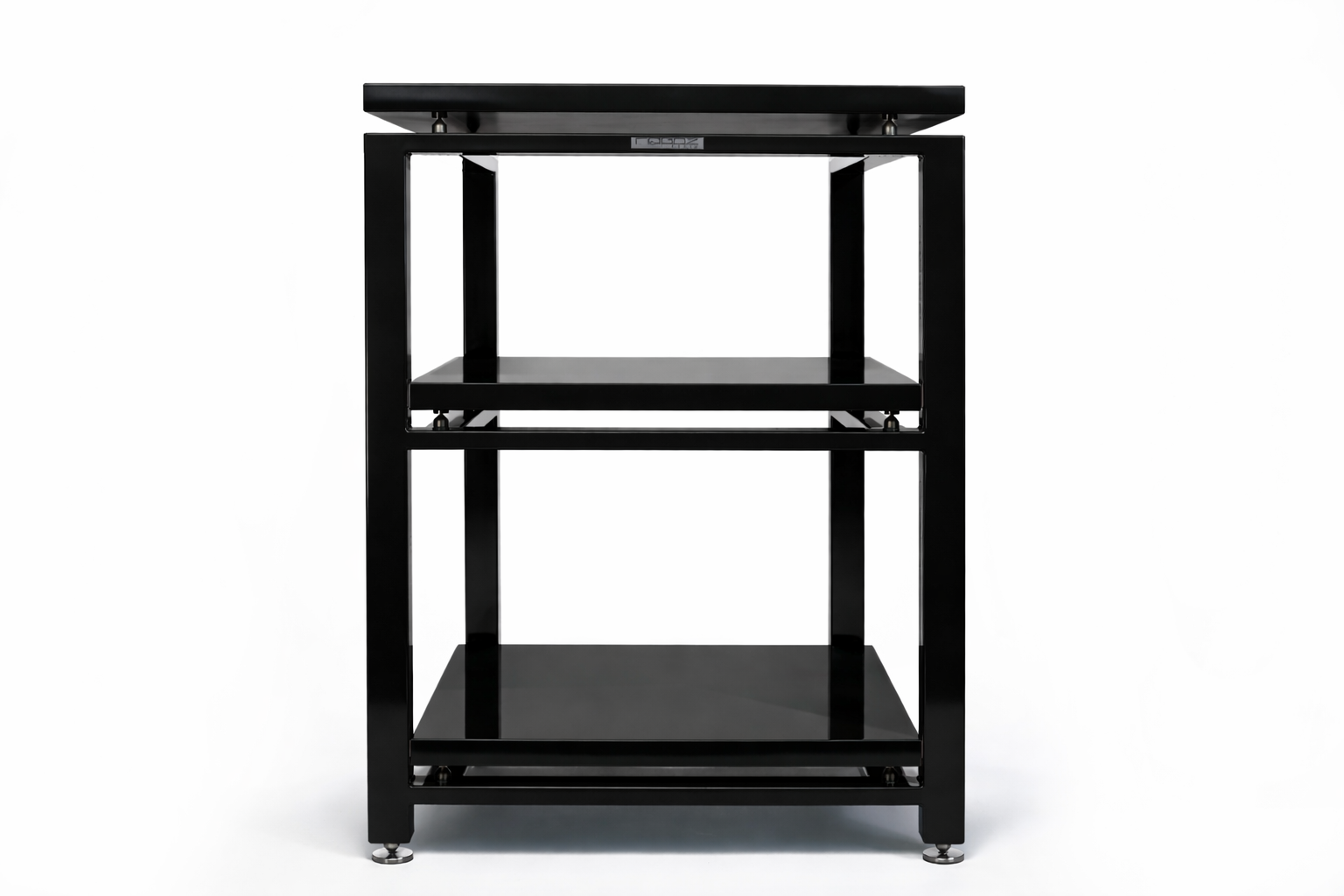

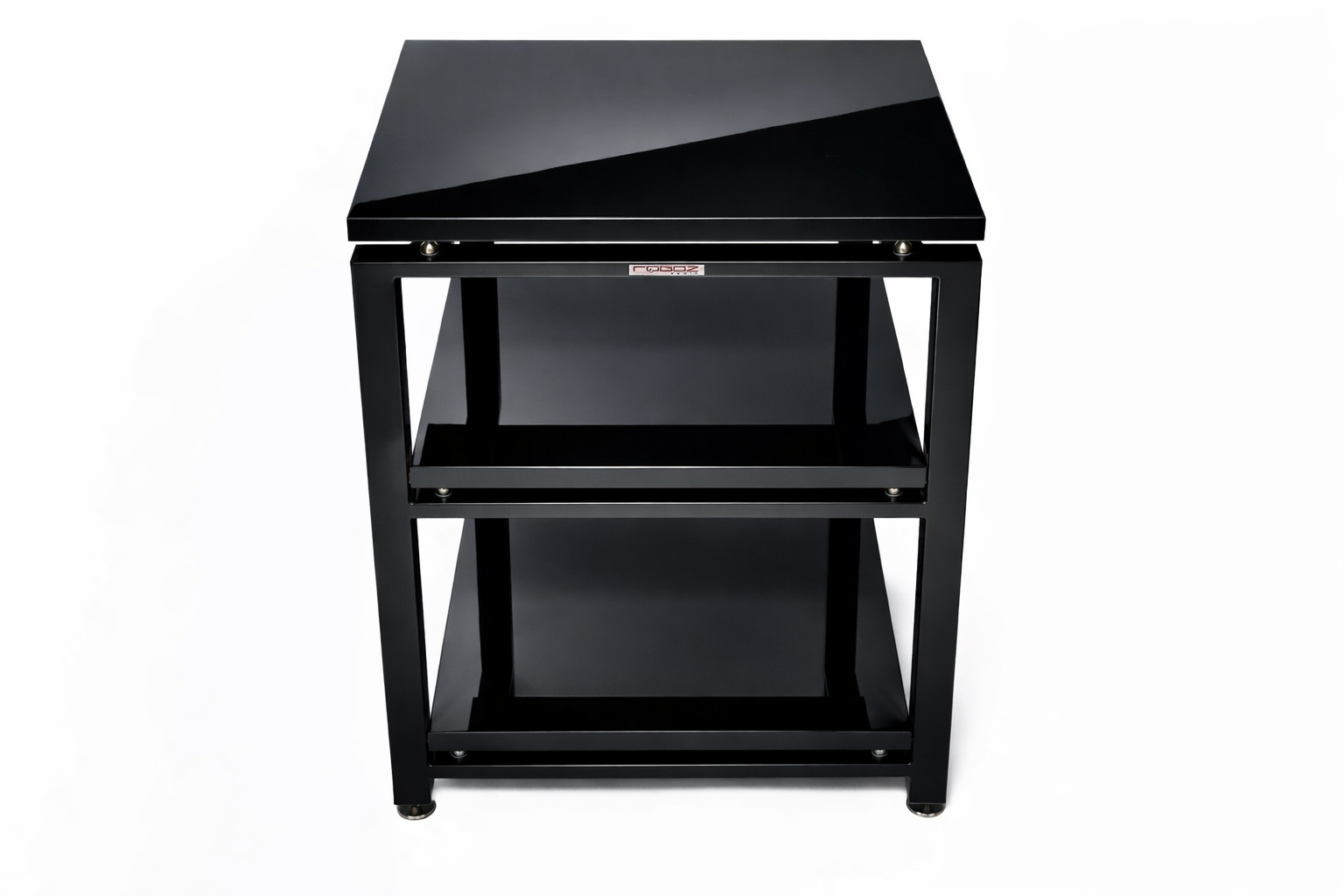

Four-leg, three-level design. Sandwich-structured shelves finished in verde chiaro high gloss.
The frame is designed for quartz sand filling — threaded openings at the rear of the legs allow adjustment of both the amount and type of ballast. Frame finish: verde chiaro satin.
Images may also present alternative finish options, illustrating available color and material variations.
The Harmoniigo is designed as an extended rack for advanced audio systems, offering three independent levels, high load capacity, and a stable four-leg structure for optimal multi-component layout.
Vibration control and mechanical stability
Rogoz Audio racks are designed as systems that control the flow of mechanical energy. In the Harmoniigo model, the key elements are mass, structural rigidity, and point-based support.
The structure is tuned through the deliberate combination of different steel types. The frame consists of thick-walled legs made of S235JR carbon steel and crossbars made of high-strength S355 alloy steel.
The sandwich-structured shelves (MDF/HDF/MDF) promote dissipation and damping of vibrational energy rather than its accumulation.
Point support on adjustable anti-vibration spikes reduces the contact area, limiting vibration transfer and enabling controlled energy dissipation.
Quartz sand ballast increases system inertia and introduces additional internal damping. The granular material acts as a mechanical filter, effectively dispersing higher-frequency vibrations and limiting their propagation within the structure.
Each rack is delivered with a factory-optimized ballast filling, with the option for further tuning if required.
Sound performance
In practice, this results in a more natural and stable sound presentation, improved low-frequency control, and greater precision in imaging and instrument separation — especially in complex multi-component systems.
TECHNICAL SPECIFICATIONS
• total height – 770 mm
• total width – 580 mm
• total depth – 460 mm
• leg profile – closed section 40 × 40 mm
• top shelf – 580 × 460 × 30 mm
• inner shelves – 495 × 415 × 30 mm
• clearance between shelves – 280 mm / 220 mm
• load capacity per shelf – up to 100 kg (total 300 kg)
INCLUDED
• 1 steel frame
• 3 shelves (sandwich construction – MDF / HDF / MDF)
• 16 height-adjustable cones
• 12 isolation discs
• 4 floor protection pads
APPLICATION
• CD players
• turntables
• integrated amplifiers
• preamplifiers
• power amplifiers
• DACs
• audio streamers
CUSTOM CONFIGURATION
Custom configurations are available upon request — including dimensions, layout, and finish options. Each unit can be precisely tailored to match a specific audio system and its operating conditions.
