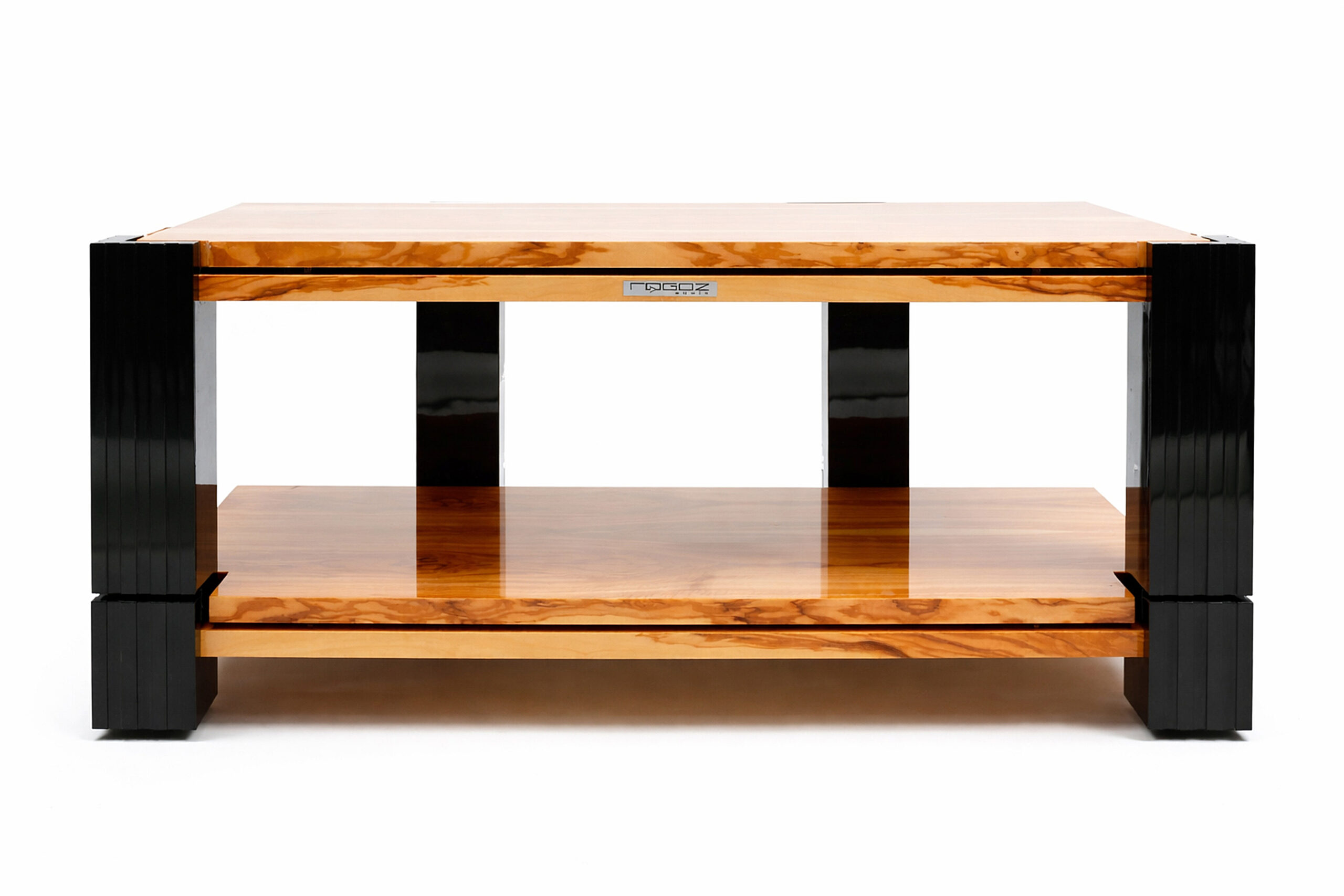

2-level, four-legged, modular stand, with multi-layer shelf structure. The shelves are covered with natural wood veneer (in the version shown, it is high gloss olive wood).
The legs have a multi-layer structure (in the version shown, they have black glossy piano finish). The double shelves are separated by BBS. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components.
All modules are separated from each other by means of adjustable anti-vibration spikes. The stand consists of three separate modules and can be expanded by adding extra modules.
The audio stand structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137 Pending). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
TECHNICAL DESCRIPTION
Overall height: 580 mm;
Overall width: 1320mm;
Overall depth: 740 mm;
Leg profile: 120 x 120 mm;
Top shelf: 1260 x 680 x 30 + 30 mm;
Bottom shelf: 1060 x 580 x 30 + 30 mm;
Usable distance between the shelves (moving upwards): 340 mm;
Maximum load for each shelf: up to 100 kg (total: 200 kg)
The reference anti-vibration Balancing Board System BBS (Patent P.404137) is used in the construction of models marked with the abbreviation BBS. The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
CUSTOMIZE THESE PRODUCTS TO SUIT YOUR NEEDS
A unique feature of our company is extreme flexibility. Some modifications are possible and as a result each product is manufactured on a made-to-order basis. As a result, your furniture will be suitable for the size of your audio equipment, it will match the décor of the interior in which it is displayed, and it will reflect your personal taste. Alterations of our standard products are priced individually. Possible changes involve:
