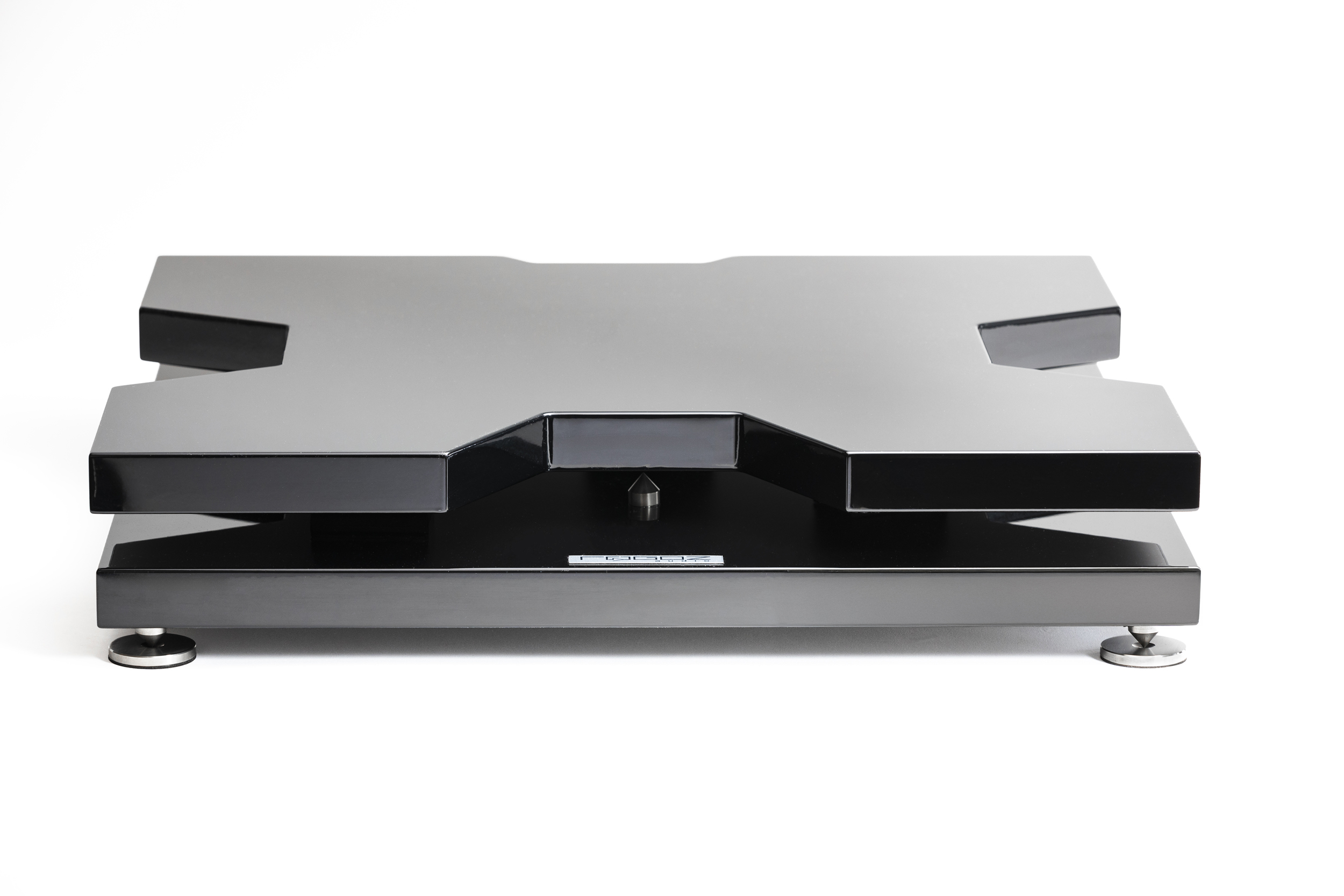

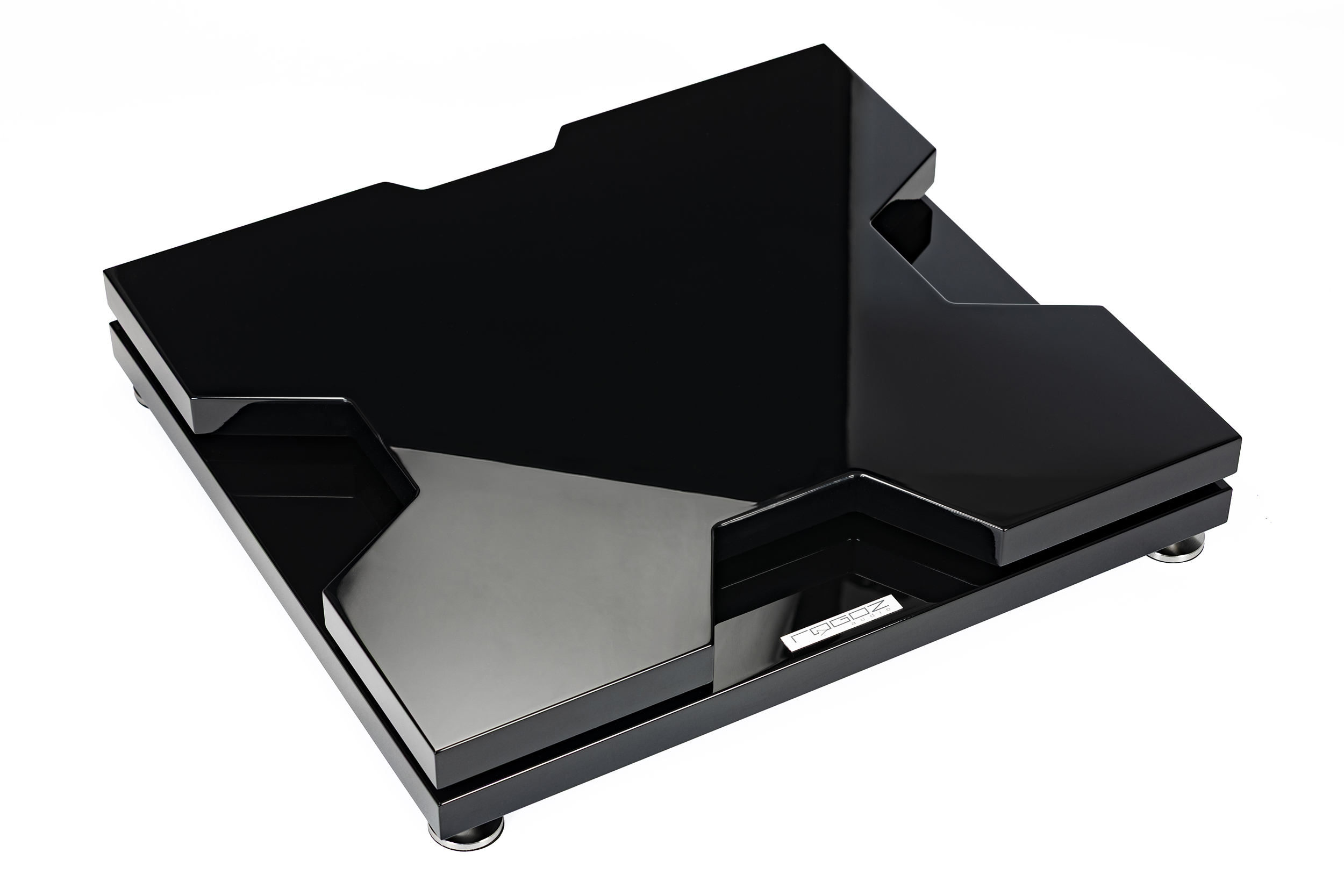

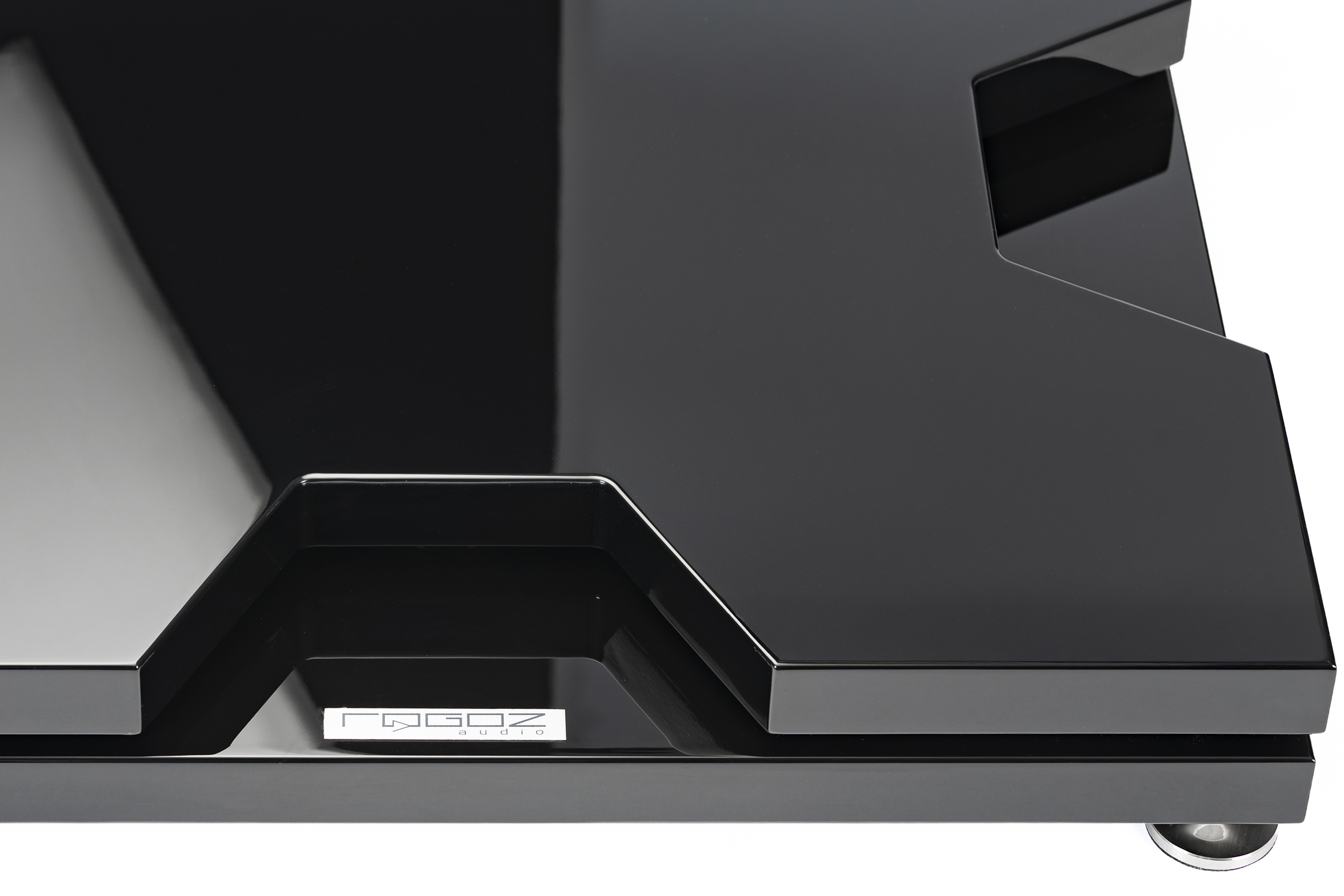

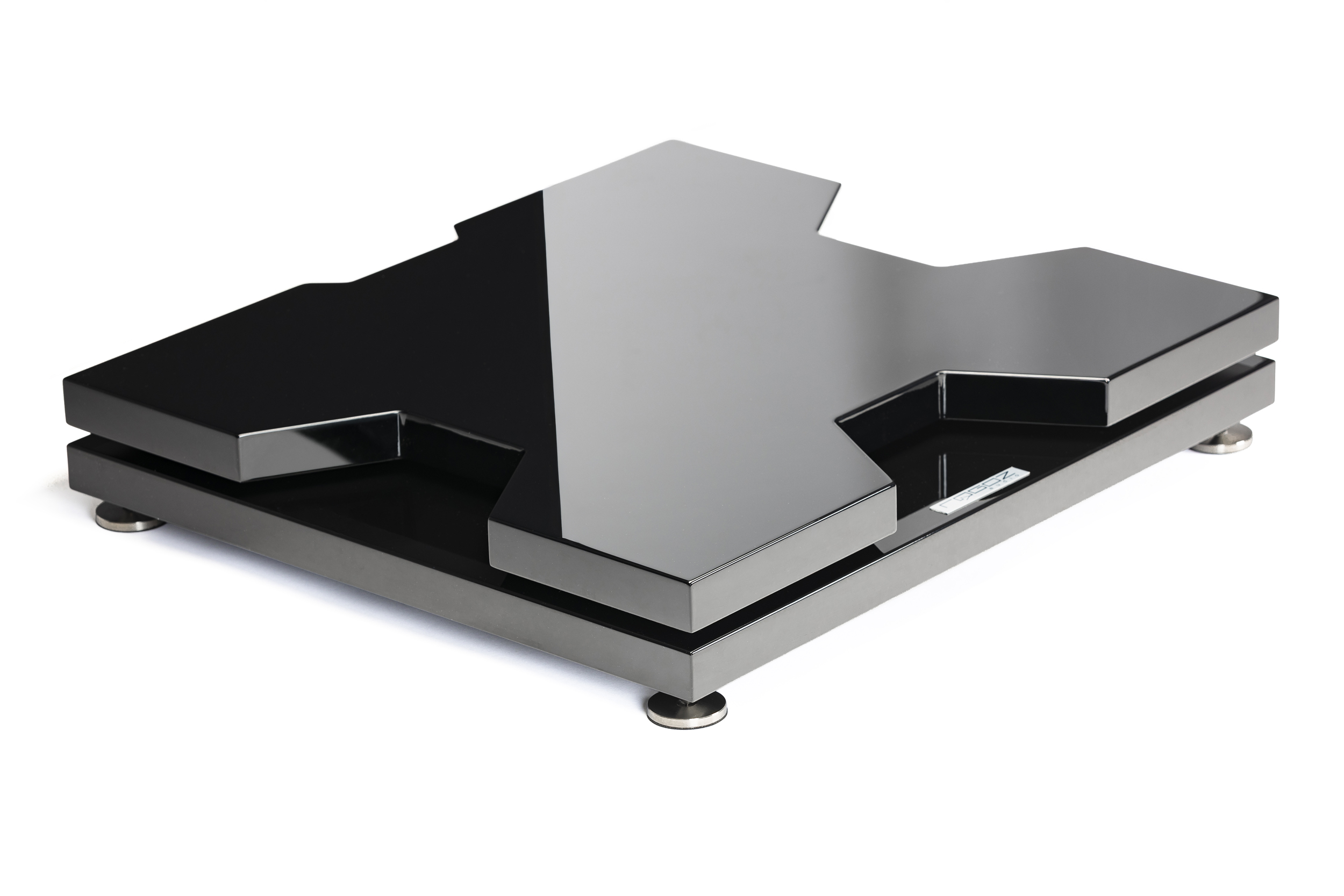

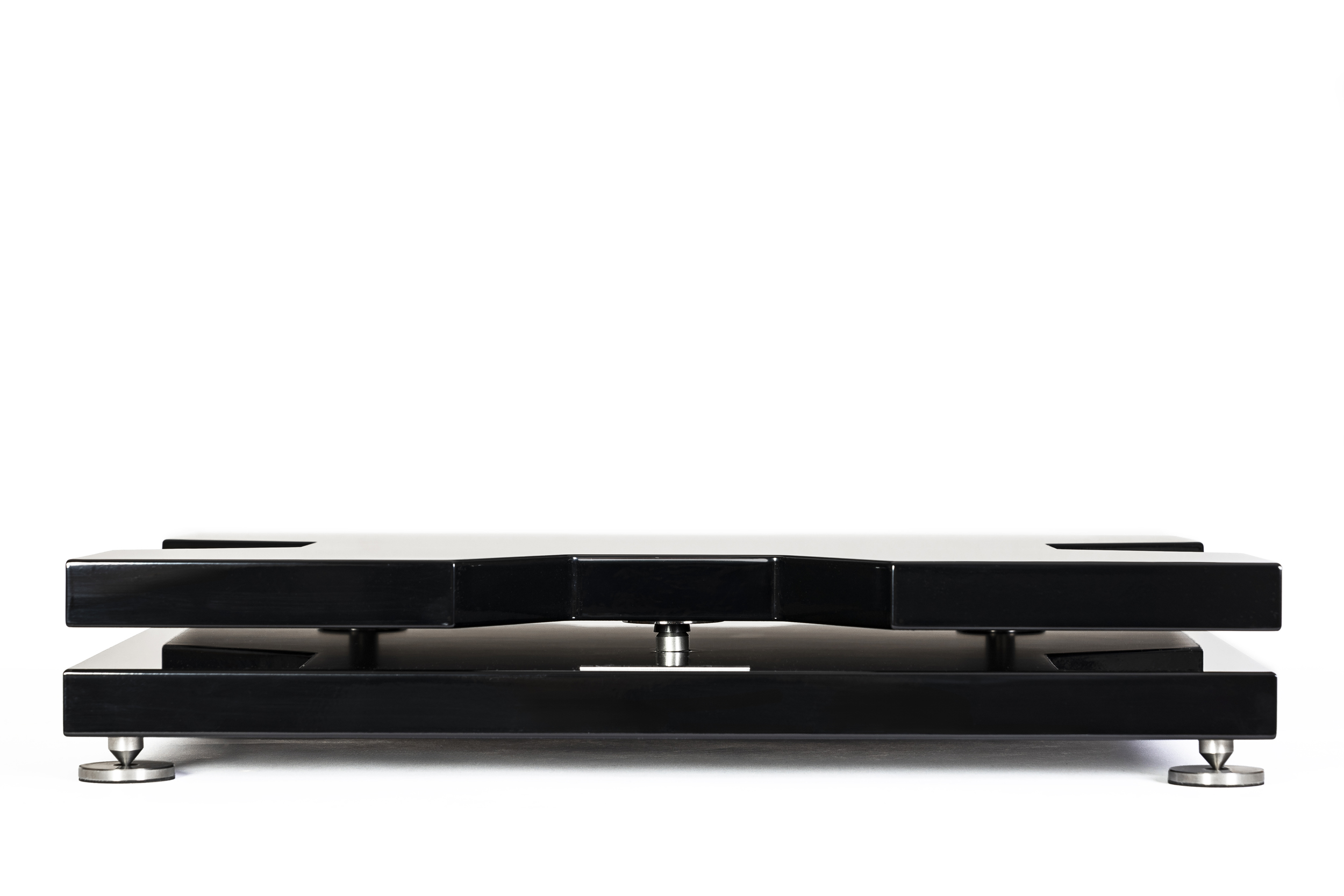

Sandwich construction. Piano gloss finish.

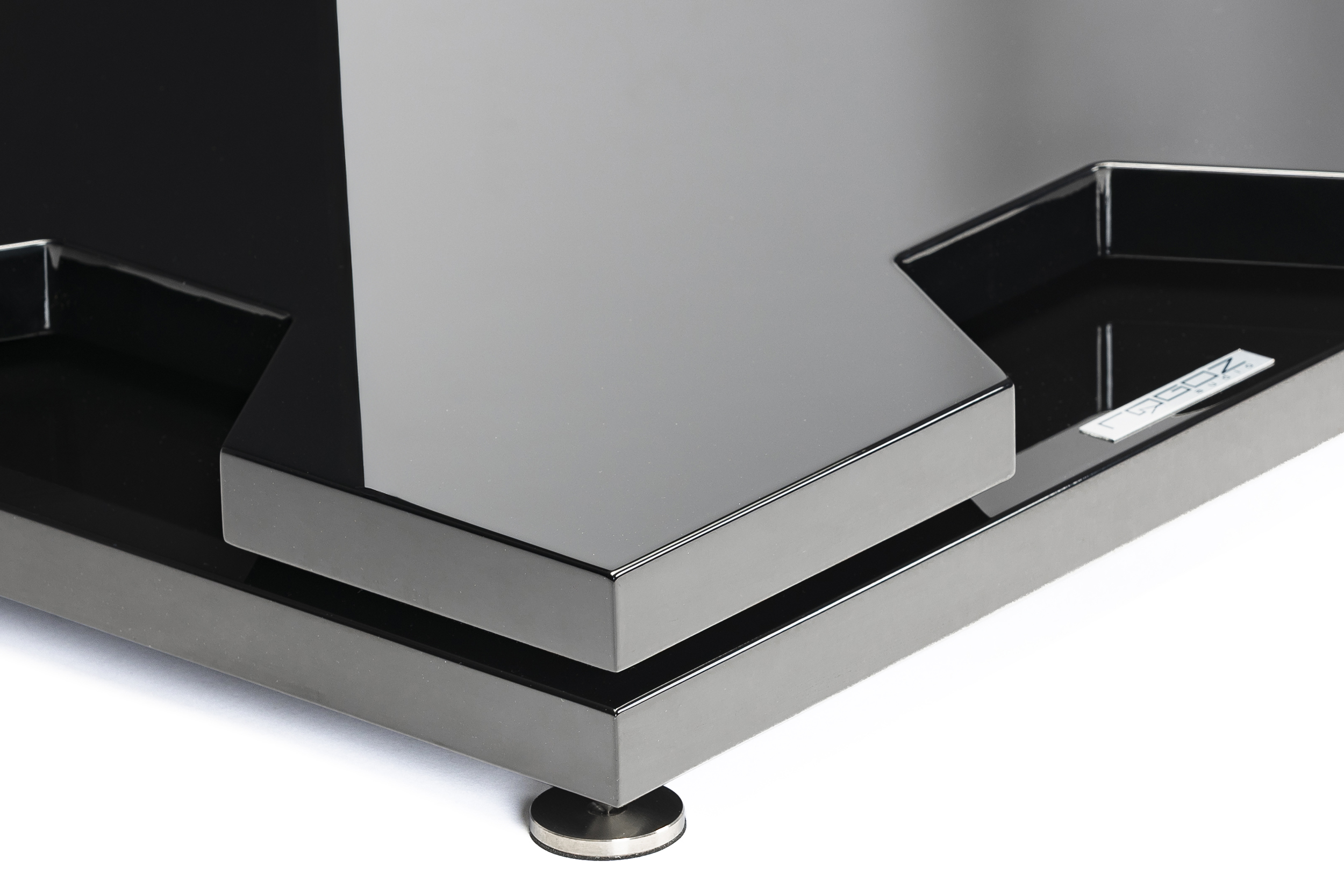

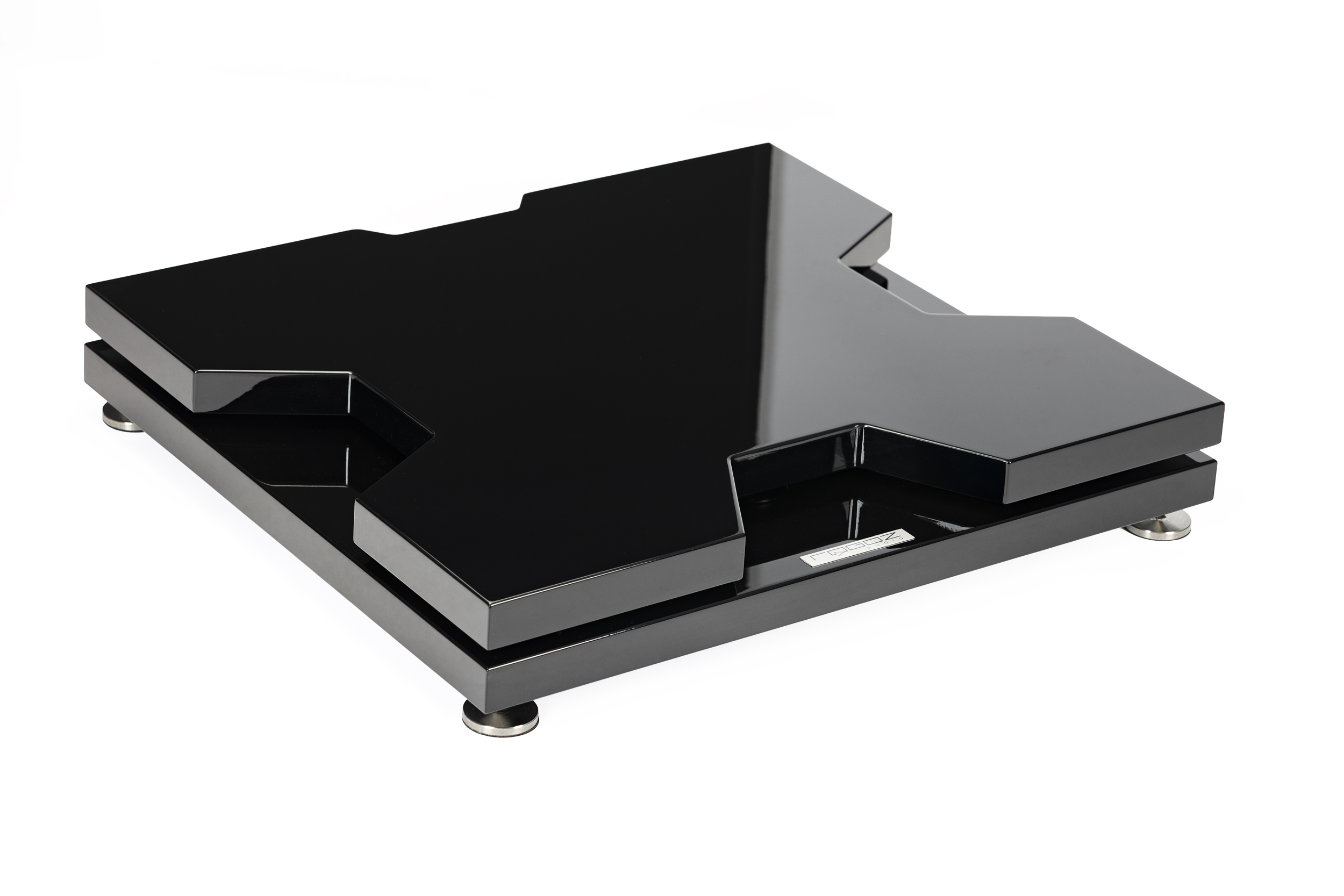

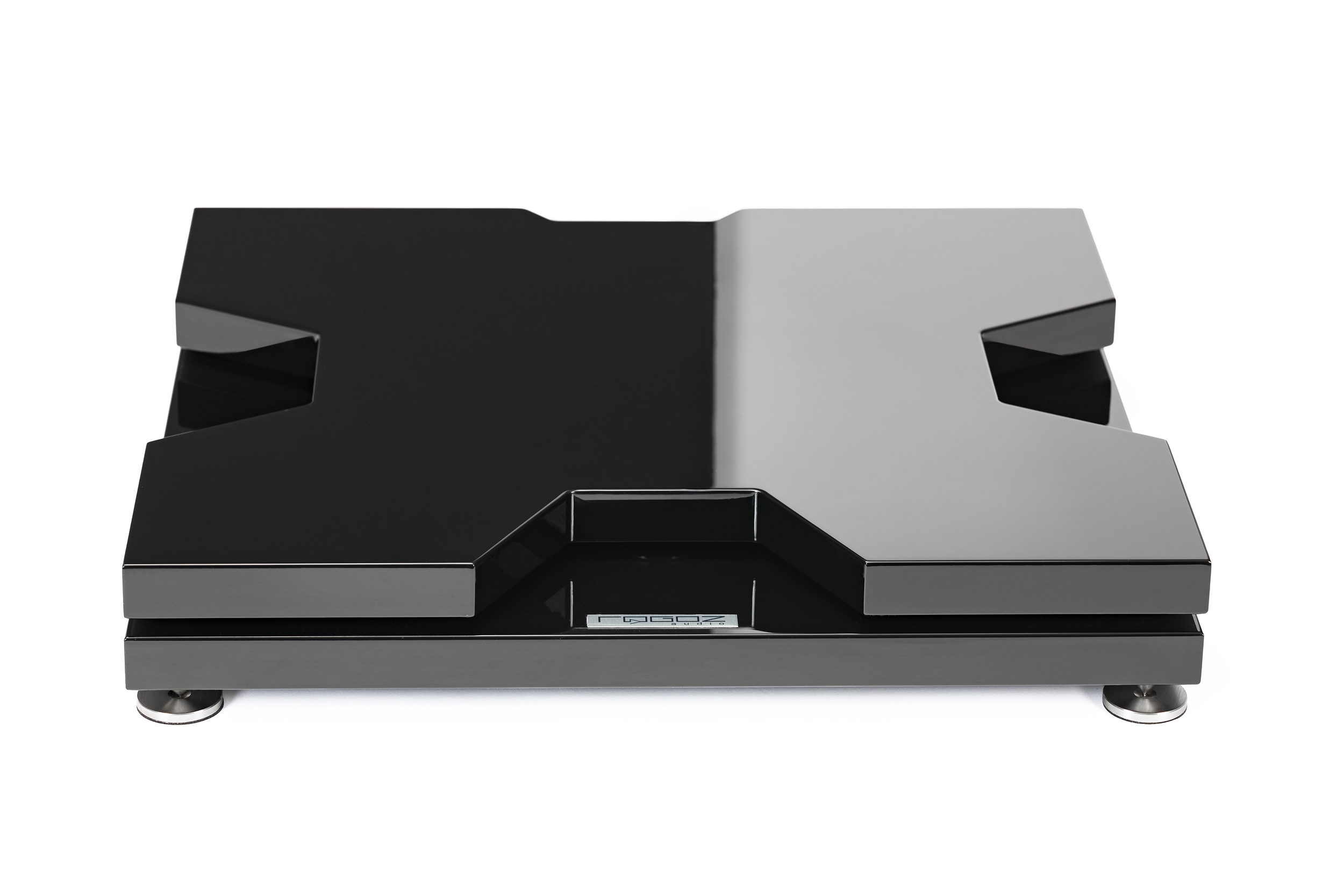

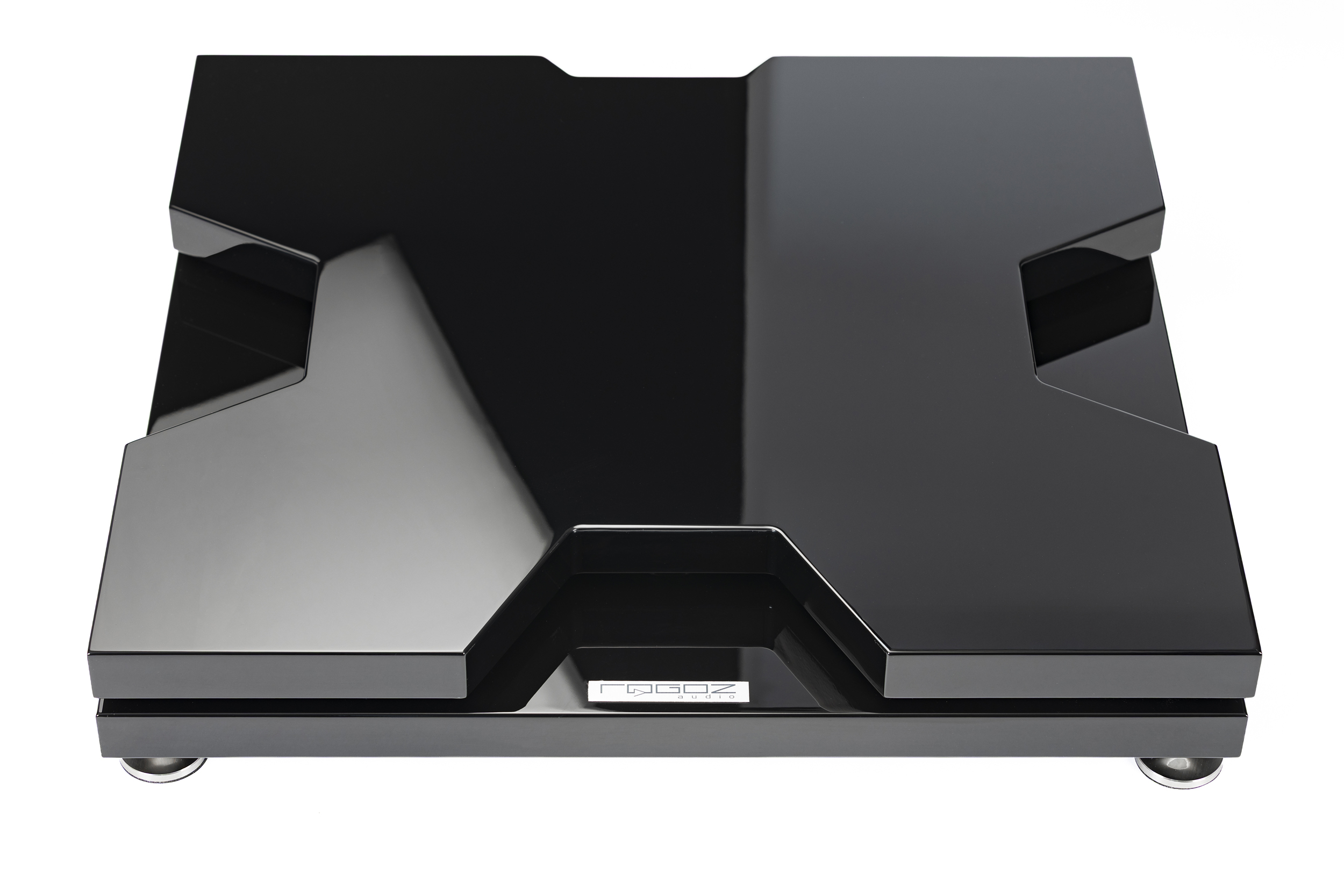

The dual-layer top boards (2 × 30 mm) are separated by the proprietary BBS system. The irregular shape of the upper platform reduces the formation of symmetrical resonance modes and minimizes the risk of standing waves within the structure. Varying characteristic dimensions and the absence of parallel edges promote a more uniform dissipation of vibrational energy throughout the entire construction.
Anti-vibration platforms are designed for high-end audio components. The design incorporates the proprietary BBS (Balancing Board System) anti-vibration system.
BBS System (Balancing Board System)

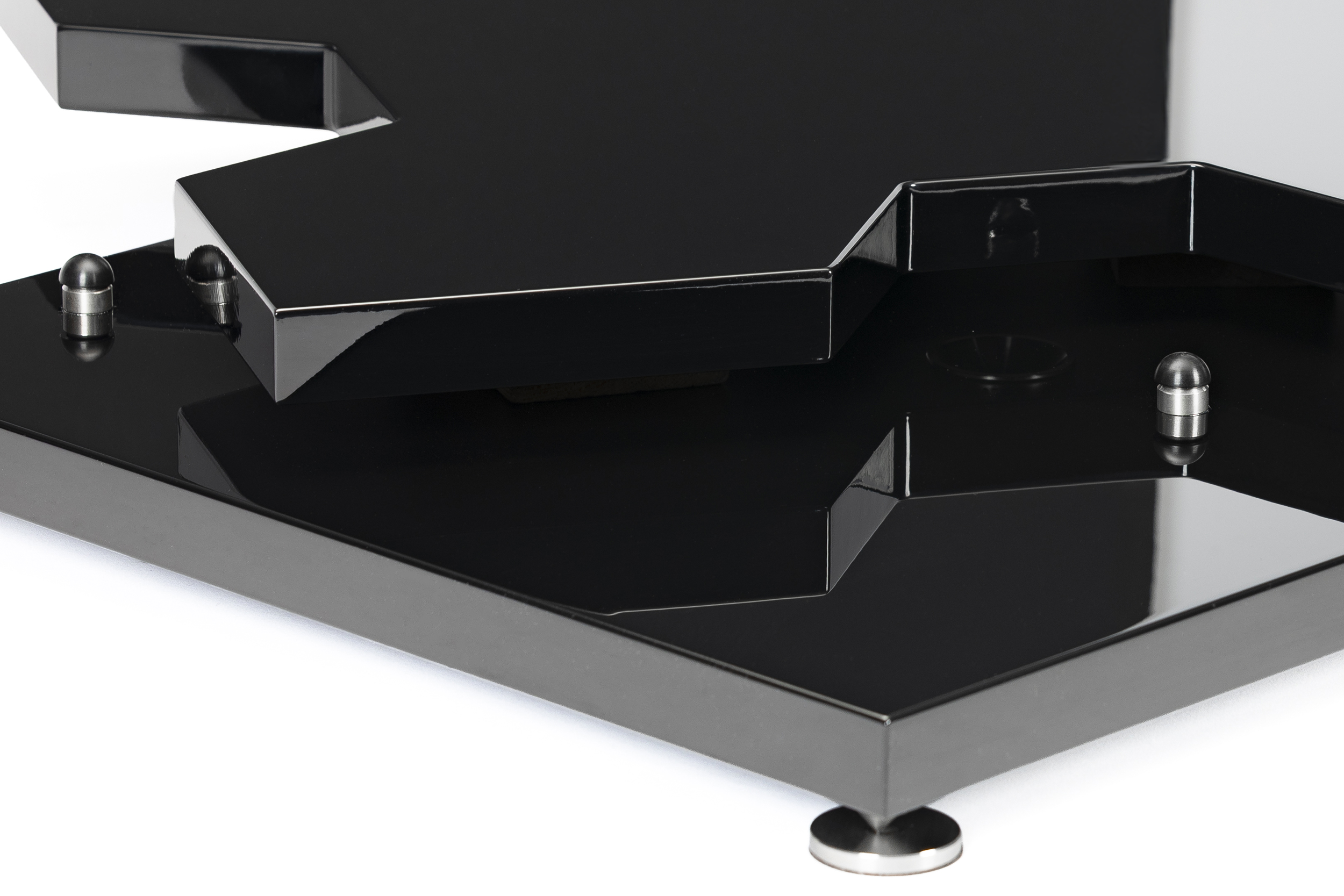

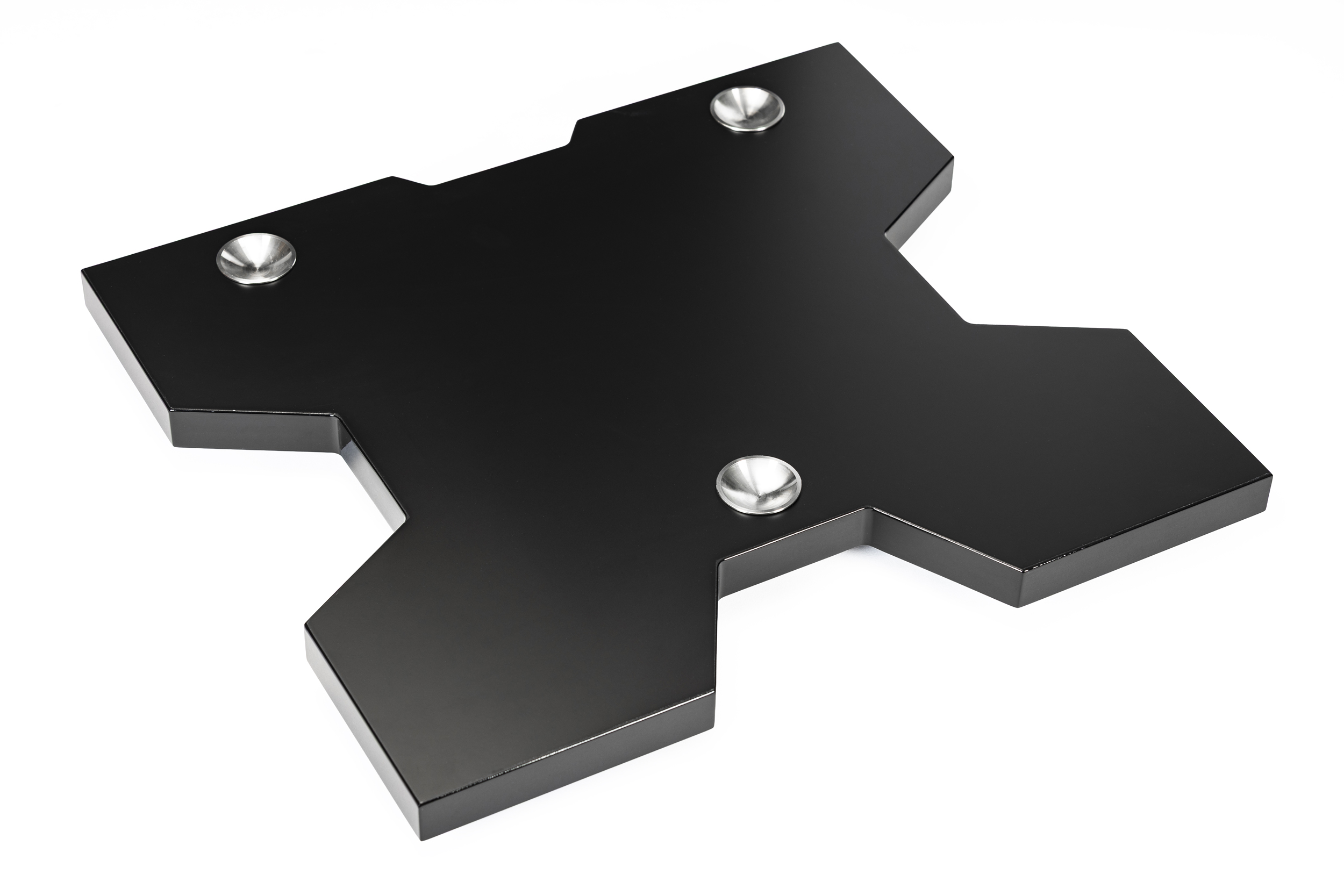

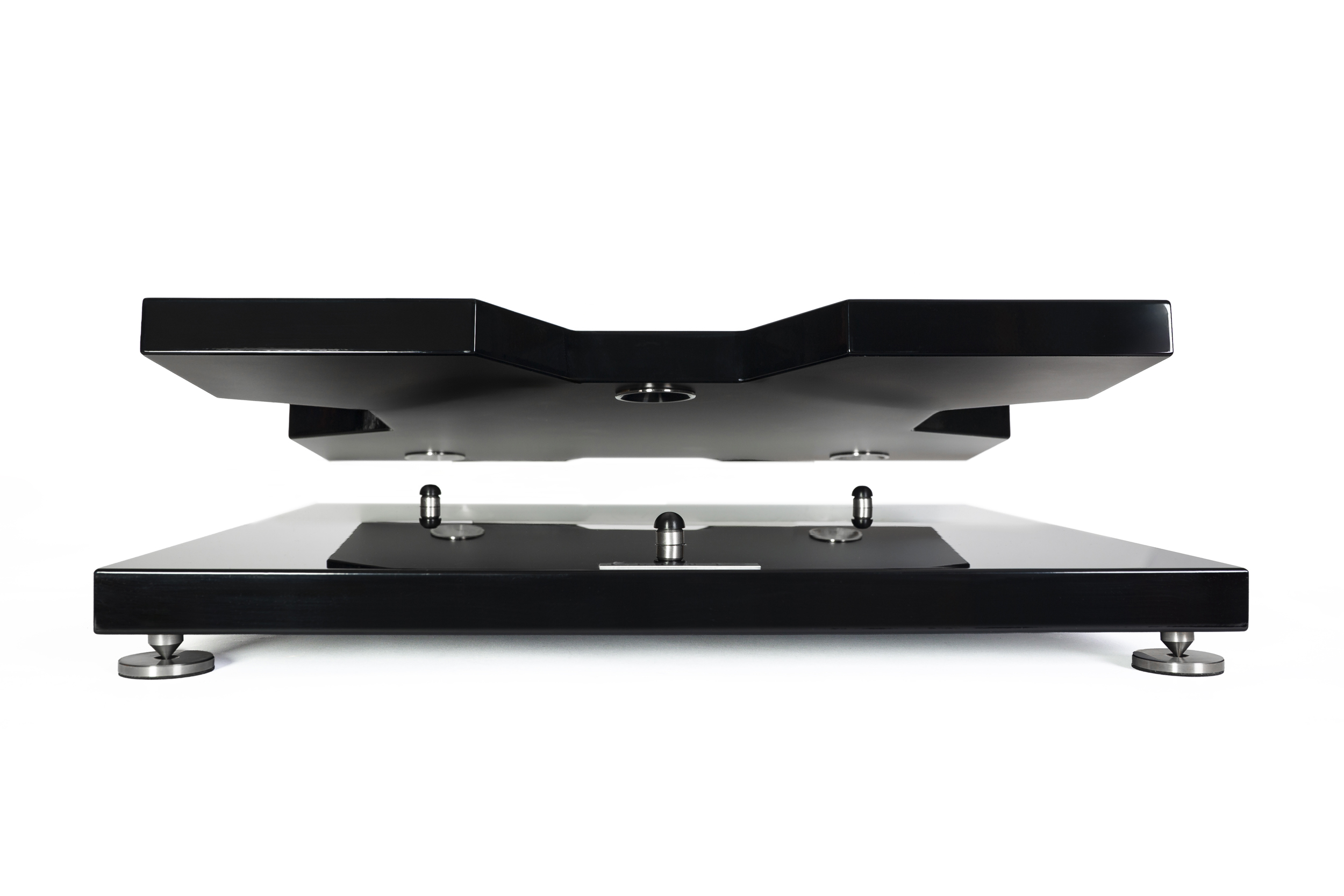

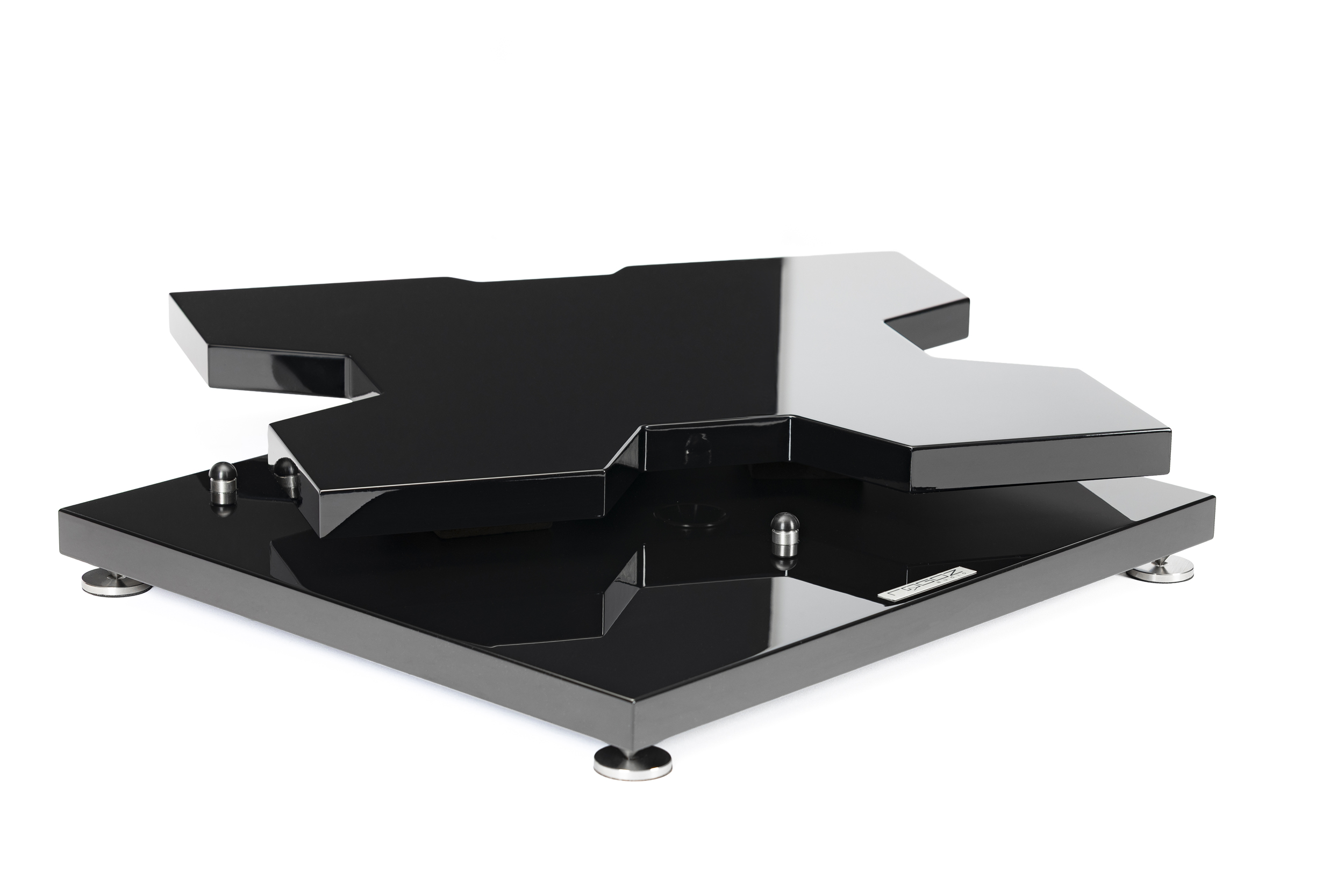

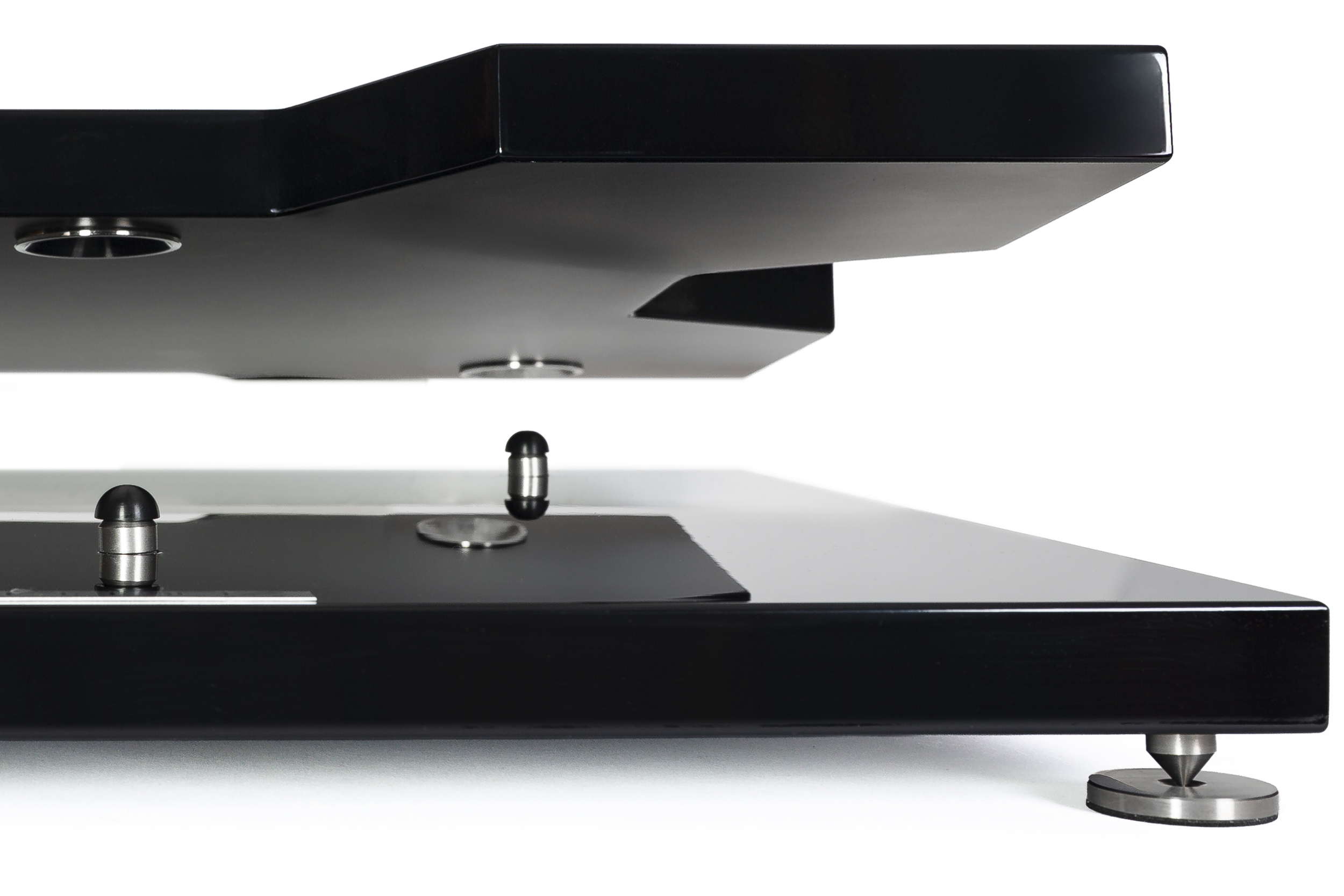

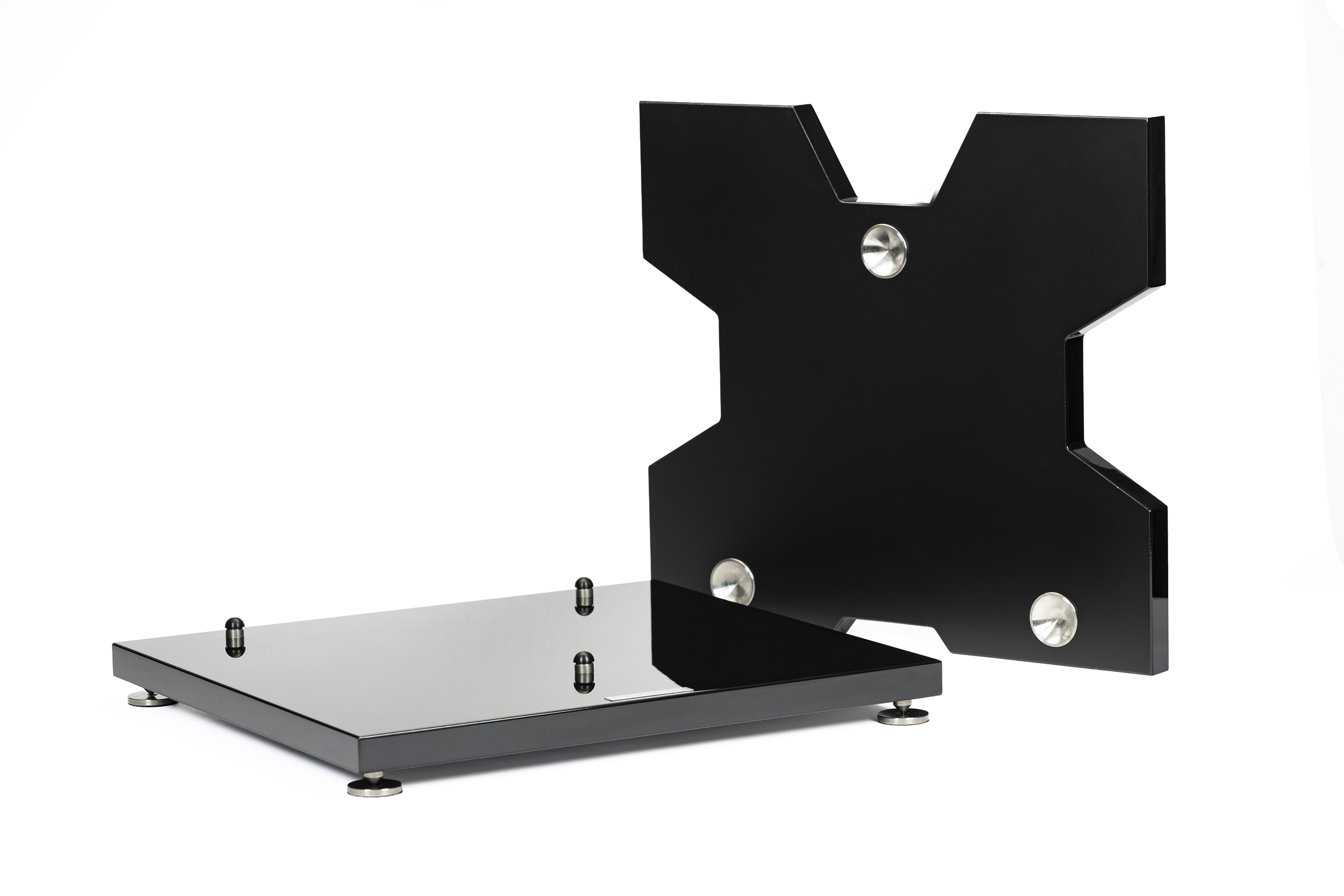

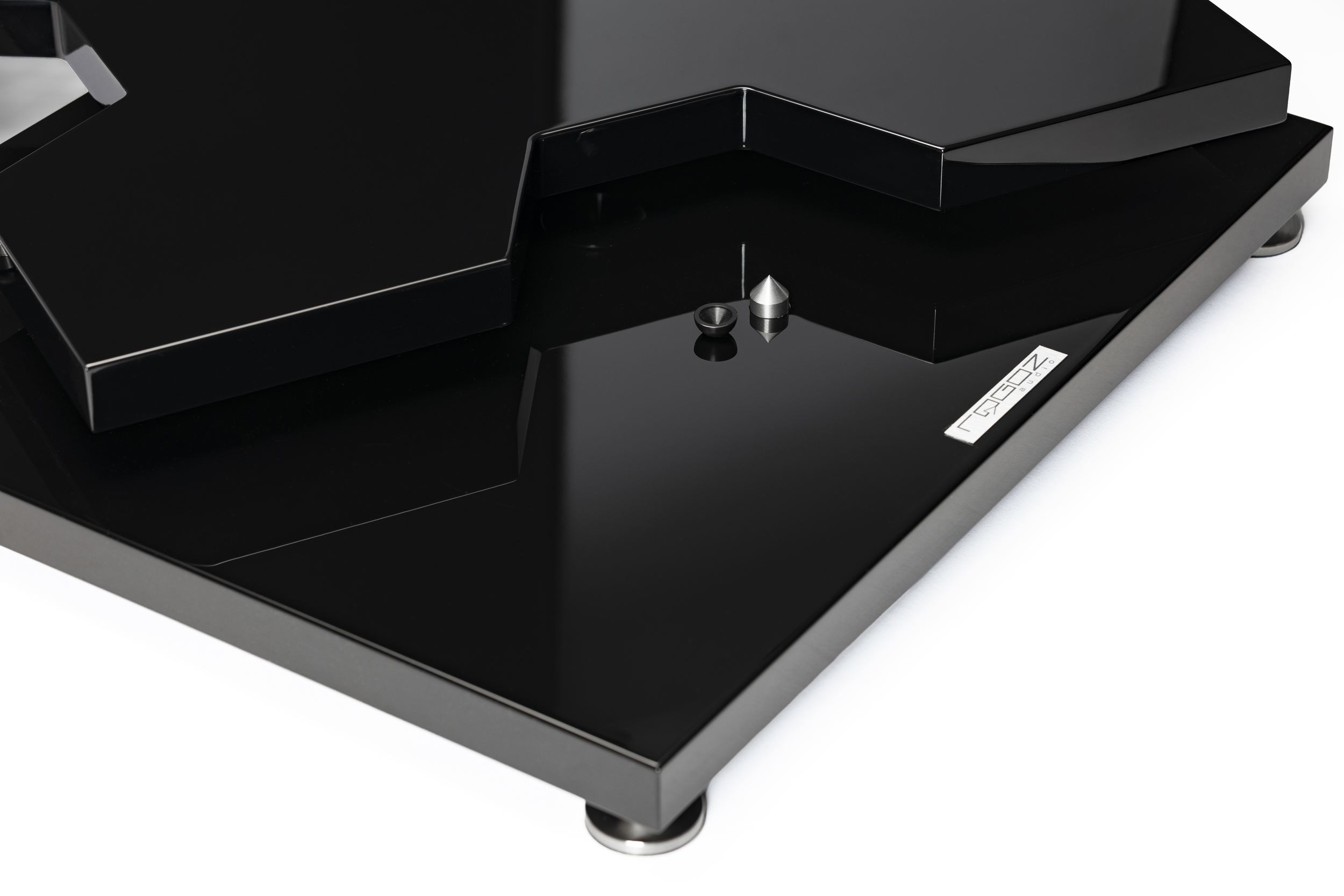

The BBS system is based on a set of precisely interacting elements: a height-adjustable steel cone, an intermediate carbon-polymer element, and steel sockets embedded in the platforms.
The point contact between the cone and the intermediate element stabilizes the system along its axis while allowing controlled pendulum-like movement. At the next stage, vibrational energy is transferred to the contact zone, where limited rolling and sliding motion can occur.
This sequence of interactions ensures that vibrations are not transmitted linearly but are progressively dissipated and attenuated.
In practice, this results in multi-stage vibration reduction — through friction, rolling resistance, internal material damping, and inertia involved in energy transformation and redistribution — while maintaining stable point support.
The system acts as a mechanical filter, reducing both the transmission of vibrations from the environment and their feedback into the audio component.
The result is a more stable operating environment and a noticeable improvement in clarity, precision, and coherence of the reproduced sound.
The BBS system is patent protected.
TECHNICAL SPECIFICATIONS
total height – 92 mm
total width – 500 mm
total depth – 450 mm
top platform – sandwich MDF + HDF + MDF, 500 × 450 × 30 mm
base platform – sandwich MDF + HDF + MDF, 500 × 450 × 30 mm
maximum load – up to 100 kg
INCLUDED
1 platform
4 height-adjustable cones
BBS system installed between platforms
4 heavy-duty floor protection pads
APPLICATION
CD players
turntables
loudspeakers
power amplifiers
preamplifiers
integrated amplifiers
